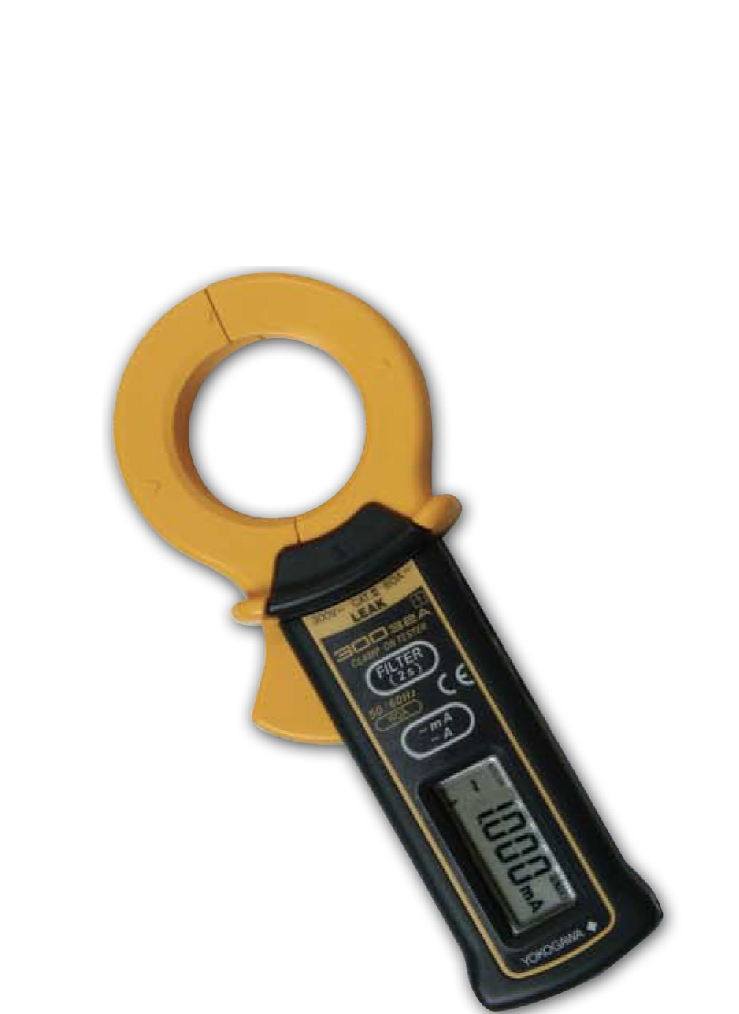

YOKOGAWA 30032A Clamp meter (AC 60A; true RMS)

AC current measurement : + Filter function OFF: 3mA, 30mA, 30A, 60A; 0.010 I ≤32.70mA: 1.0%+5 at 3mA, 30mA

+ Filter function ON: 3mA, 30mA, 30A, 60A; 0.010 I ≤32.70mA: 1.5%+5 at 3mA, 30mA

Method of detection:Mean-value detection and rms-value calibration

Display: LCD (Digital reading 3200 counts), Bar graph (32 segments)

Range switching:Range selection Auto or Manual

Data hold: On all range

Operating temperature and humidity :0-50oC 80% RH or less (no condensation)

Temperature coefficient: Following values must be added in the temperature range of either 0 to 18°C or 28 to 50°C 0 ≤ I ≤ 50.0A: ± (0.08% of reading/°C + 0.5 digits/°C) 50.0 < I ≤ 60.6A: ± (0.3% of reading/°C + 0.5 digits/° C)

Effect of external magnetic field: 0.0005%typical value (in terms of the magnitude of current in adjacent wires

Safety standard:Conforms EN 61010-1, EN 61010-2-032 CAT. III 300V

Circuit voltage:300Vrms or less

Withstanding voltage:3.7 kV AC for one minute

Power supply:CR2032 lithium battery x 1

Power consumption: 6mW maximum

Batttery life:Approx. 90 hours

Auto power-off: Power approx. 10 minutes after the last switch operation.

Dimensions:Approx 70 (W)x 178 (H) x 25 (D) (mm)

Weight: Approx 200 g (including the battery)

Accessories:User’s manual, Battery, Soft carrying case (RB057)
