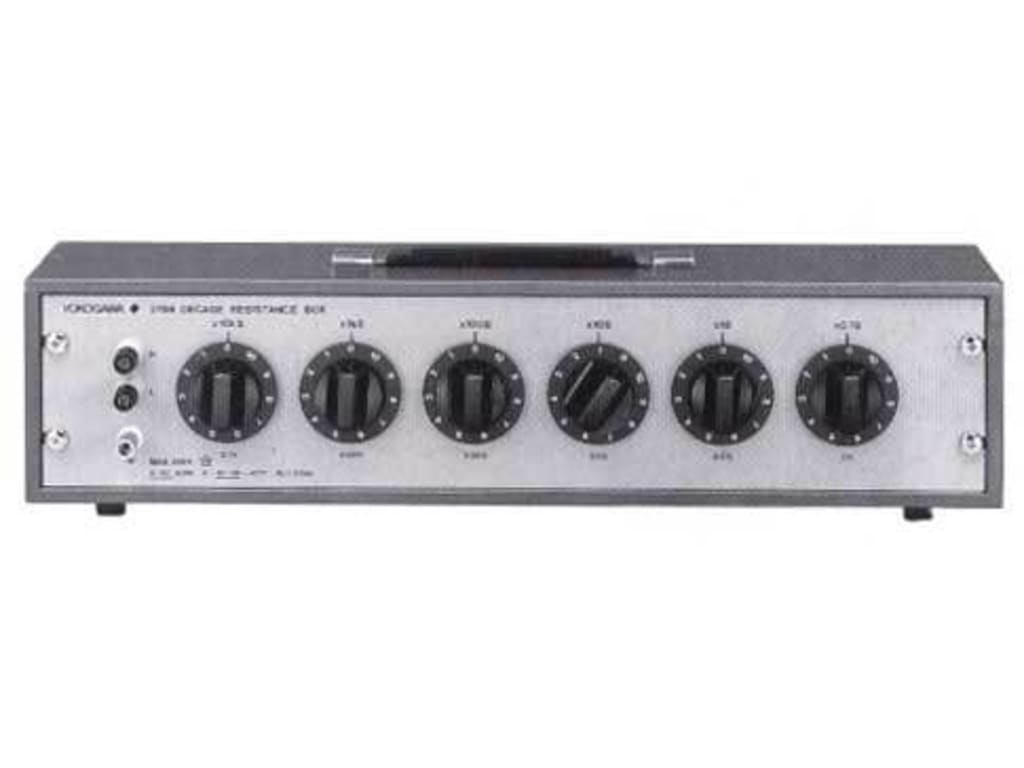

Yokogawa 278610 Decade Resistance Boxes (0,1~111.111Ω)

Resistance Range:0.1 to 111,111Ω (Six decade dials)

Residual Residence:Less than 23mΩ

Power Rating:0.3W/Step, Within 3W for overall instrument

Maximum Allowed Input:0.5W/Step, 5W for Overall Instrument

Maximum Circuit Voltage:250V

Operating Temperature Range:0 to 40°C ( 32 to 104°F)

Storage Temperature Range:-10 to 50°C (14 to 122°F)

Humidity Range:25 to 85% relative humidity

Insulation Resistance:More than 500MΩ at 500V DC between panel and circuit.

Dielectric Strength:1,500 V AC for one minute

Dimensions:497（W）×116（H）×140（D）mm (excluding protrusions)

WeightApprox. 3.5kg
