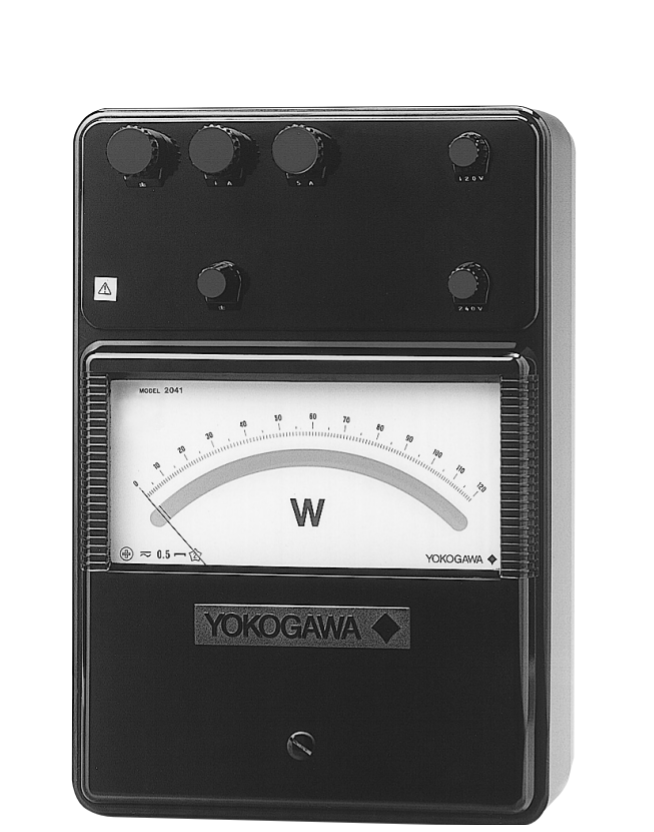

Yokogawa 2041 02 Portable Wattmeters

Class:JIS C 1102: 1997 Class 0.5

Rated Voltage (Approximate Consumed Power):120/240V (1.2/2.4 VA)

Rated Current (Approximate Consumed Power):1/5A (0.93/0.84VA)

Rated Power Factor:1.0

Operating Frequency:DC, 25~1000 Hz

Operating Principle:Electrodynamometer type

Operating Position:Horizontal

Scale Length:Approximately 135 mm (Deflection Angle: 85°)

Scale Divisions:120

Operating Temperature Range:0 ~ 40°C

Operating Humidity Range:30 ~ 75% RH

Storage Temperature Range:-10 ~ 50°C

Storage Humidity Range:25 ~ 80% RH

Dimension:260 x 180 x 115 mm

Weight:2.8 kg
