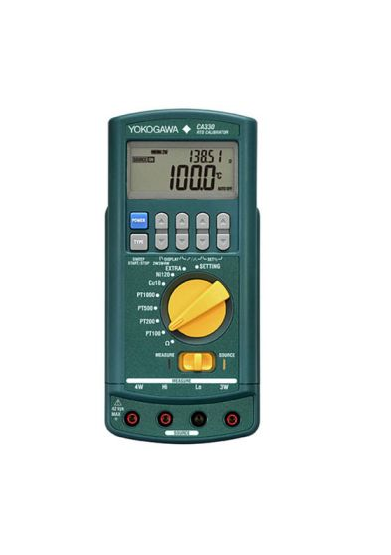

Yokogawa CA330 RTD Calibrator

Resistance source: 500Ω, 3000Ω; 0.025% of setting+0.1Ω at 500Ω

Resistance Measurement: 500Ω, 3000Ω; 0.025% of reading+0.1Ω at 500Ω

Display: Segment LCD

Backlight: LED (Selection of "Constantly ON", "Constantly OFF" or "Auto off by approx. 2min")

Display refresh rate: Approx. 1sec

Warm-up time: Approx. 5min

Power supply: Four alkaline AA batteries, Dedicated AC Adapter (Sold separately)

Battery life: 55 hours

Auto Power Off: Approx. 20min. (Disabled by setting)

Dimensions: Approx. 90 (W)×192 (H)×42 (D)

Weight: Approx. 440g

Operating temperature / humidity ranges: -10 to 55°C, 20 to 80%RH (without condensation)

Storage temperature / humidity ranges: -20 to 60°C 90% RH or less (without condensation)

Accessories: Carrying case (B9108NK)/Lead cables( a set of 1 black and 3 red lead wires for generation and measurement/98035) /Binding post (Red Black 1 piece/99045)/ Binding post (Red Red 1 piece / 99046) /four AA alkaline batteries/ Instruction manual

Brochure:

Manual:
