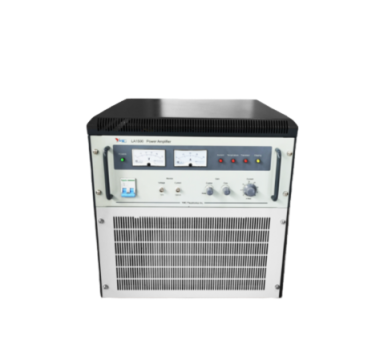

YMC PIEZOTRONICS YMC LA-1500 Linear Power Amplifier (1500 VA, >10 kΩ)

Rated Power Output: 1500 VA

Input Impedance: >10 kΩ

Rated Voltage Output: 40 Vrms

Rated Current Output: 37.5 Arms

Non-linearity Distortion: <0.5%

S/N Rate: ≥90 dB

Gain V/V ±2dB

Frequency Range (Hz):

DC: 0 ~ 10k ±1dB

AC: —

Frequency Range (Hz):

Full Power: 10 ~ 5k

Reduced Power: 0 ~ 10k

Size W×H×D (mm): 500×485×560

Weight: 63 kg

Power Supply: 220V 50Hz 15A

To drive Modal Shakers and Vibrators: MS–1000, VT–1000

Datasheet
