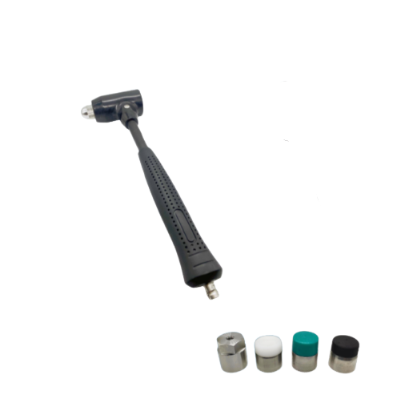

YMC PIEZOTRONICS YMC IH-10PE Impact Hammer (4 pC/N, 10000 N pk)

Sensitivity: 4 pC/N

Measuring Range: 10,000 N pk

Nonlinearity: ≤1%

Resolution: 250 mN rms

Resonant Frequency: 45 kHz

Low Frequency: 0.5 Hz

Head Weight: 445 g

Head Diameter: Φ32 mm

Hammer Length: 350 mm

Output Connector: BNC

Common Parameters

IEPE Output Mode:

Excitation voltage: +18 ~ +28V;

Constant current: 2 ~ 10mA;

DC offset:10 ~ 14VDC;

Output impendance: ≤100Ω;

Charge Output Mode:

Insulation Resistance: ≥10¹²Ω
