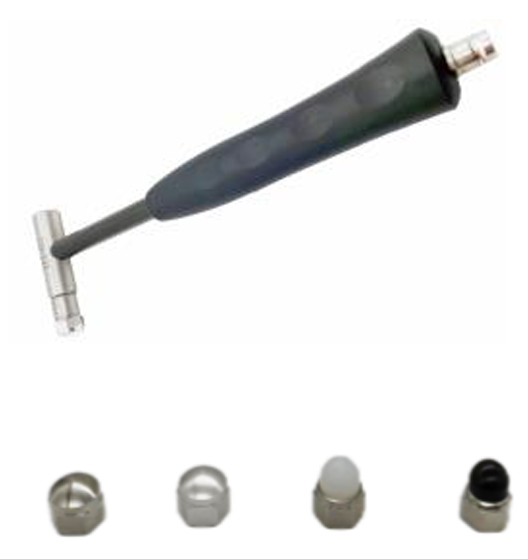

YMC PIEZOTRONICS YMC IH-05PE Impact Hammer (4 pC/N, 5000 N pk)

Sensitivity: 4 pC/N

Measuring Range: 5,000 N pk

Nonlinearity: ≤3%

Resolution: 100 mN rms

Resonant Frequency: 55 kHz

Low Frequency: 1 Hz

Head Weight: 120 g

Head Diameter: Φ20 mm

Hammer Length: 250 mm

Output Connector: BNC

Common Parameters

IEPE Output Mode:

Excitation voltage: +18 ~ +28V;

Constant current: 2 ~ 10mA;

DC offset:10 ~ 14VDC;

Output impendance: ≤100Ω;

Charge Output Mode:

Insulation Resistance: ≥10¹²Ω

Datasheet
