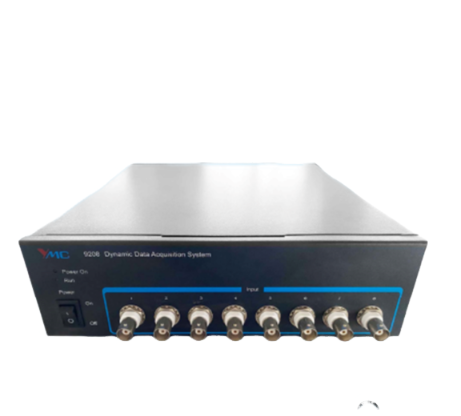

YMC PIEZOTRONICS YMC 9208H Dynamic Data Collector (±10Vp, DC ~ 100kHz, 0.3Hz ~ 100kHz, 8CH)

Channels

Input (AD): 8

Output (DA): 2

Signal Input Range

Voltage: ±10Vp

IEPE: ±10Vp

ChargePE: ±10^5pC

Input Signal Frequency Range

Voltage: DC ~ 100kHz

IEPE: 0.3Hz ~ 100kHz

ChargePE: 0.3Hz ~ 100kHz

Signal Channel Sampling Rate: 1MHz

Simultaneous Sampling Rate: 1MHz

AD bits: 16

Built-in Gain: ×0.1, ×1, ×10, ×100

Accuracy: ≤±0.5%

Conversion Rate: 500kHz

Signal Output (DA)

Analog Output Range: ±10Vp

Accuracy: ≤±1%

Size (mm) W×H×D: 240×70×280

Weight: 3.5kg

Power Supply: 220V/50Hz
