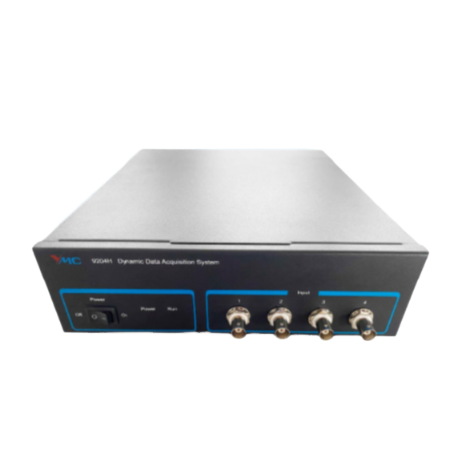

YMC PIEZOTRONICS YMC 9004 Dynamic Data Collector (±10Vp, DC ~ 30kHz, 0.3Hz ~ 30kHz, 4CH)

Channels

Input (AD): 4

Output (DA): –

Signal Input Range

Voltage: ±10Vp

IEPE: ±10Vp

ChargePE: –

Input Signal Frequency Range

Voltage: DC ~ 30kHz

IEPE: 0.3Hz ~ 30kHz

ChargePE: –

Signal Channel Sampling Rate: 100kHz

Simultaneous Sampling Rate: 100kHz

AD bits: 24

Built-in Gain: ×1, ×10, ×100

Accuracy: ≤±0.5%

Conversion Rate: –

Signal Output (DA)

Analog Output Range: –

Accuracy: –

Size (mm) W×H×D: 200×122×45

Weight: 460g

Power Supply: USB

Datasheet
