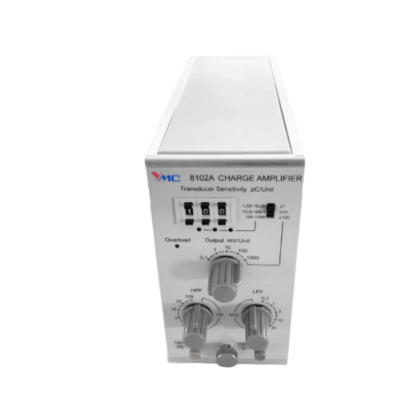

YMC PIEZOTRONICS YMC 8102 A/T General Testing Charge Amplifier (Voltage: ±10V; Charge: ±10⁶ pC)

Channel No.: 1

Input Range: Voltage: ±10V; Charge: ±10⁶ pC

Sensitivity Uniformization: 1.00 ~ 1099

Gain (mV/pC): 0.01, 0.1, 1, 10, 100, 1000

High–pass Filters (Hz): 0.3, 1, 3, 10, 30, 100

Low–pass Filters (kHz): 0.3, 1, 3, 10, 30, 100

Accuracy (%): ±1

Noise (µV): ≤5

Output Range (V): ±10

Power Supply: 220V 50Hz 0.1A or DC ±18V ~ ±27V

Operating Temperature (℃): −10 ~ +50

Weight (kg): 1.5

Size (mm): 70×132×200
