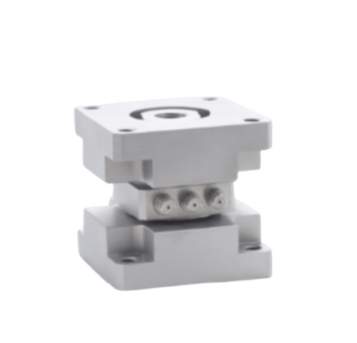

YMC PIEZOTRONICS YMC 503F02 Triaxial dynamic force sensor (Fx/Fy: 15kN pk; Fz: 30kN pk)
ModelYMC 503F02
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Sensitivity (mV/N): Fx/Fy: 0.3; Fz: 0.15
Measuring Range (kN pk): Fx/Fy: 15; Fz: 30
Non-linearity (%): ≤1
Resonant Frequency (kHz): 10
Temperature Range (℃): −54℃ ~ +121℃
Resolution (N rms): X:Y: 0.15; Z: 0.3
Min. Frequency (Hz): X:Y: 0.5; Z: 0.5
Output Connector: (3) M5
Size (mm): 80×80×90
Weight (g): 3000
