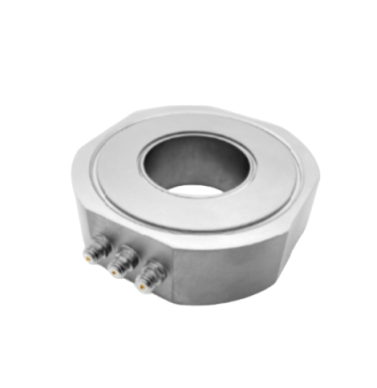

YMC PIEZOTRONICS YMC 503F01 Triaxial dynamic force sensor (Fx/Fy: 2.5kN pk; Fz: 5kN pk)

Name: YMC PIEZOTRONICS YMC 503F01 Triaxial dynamic force sensor (Fx/Fy: 2.5kN pk; Fz: 5kN pk)
Brand: YMC PIEZOTRONICS

ModelYMC 503F01

Contact

Quantity

Secure Checkout

Quality Engagement

Easy change and return

Delivery Available

Sensitivity (mV/N): Fx/Fy: 2; Fz: 1

Measuring Range (kN pk): Fx/Fy: 2.5; Fz: 5

Non-linearity (%): ≤1

Resonant Frequency (kHz): 10

Temperature Range (℃): −54 ~ +121

Resolution (N rms): X:Y: 0.015; Z: 0.03

Min. Frequency (Hz): X:Y: 1; Z: 1

Output Connector: (3) M5

Size (mm): 55×55×60

Weight (g): 1000

Datasheet
