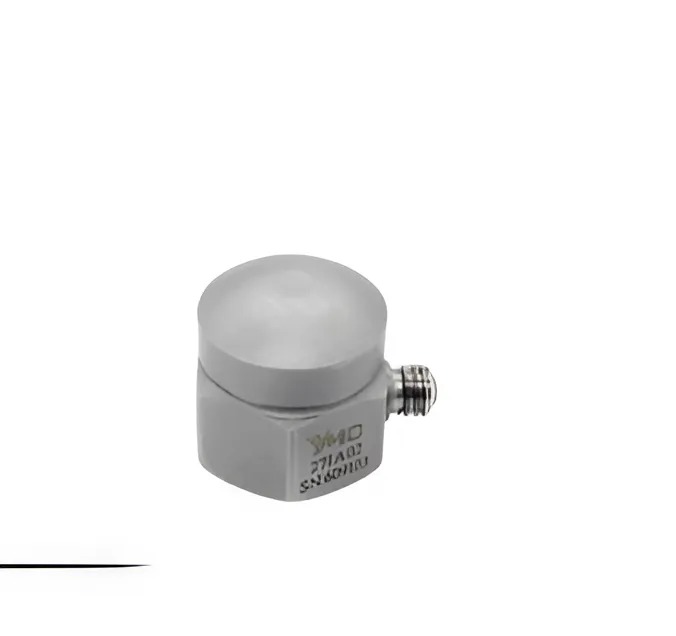

YMC PIEZOTRONICS YMC 271A02 Standard Sensor (2.0 pC/g; ±5,000 g)

Sensitivity (±10%): 2.0 pC/g

Measuring Range: ±5,000g

Overload Limit (Shock): ±10,000g

Linearity: ±0.5 %

Frequency Range: 2 ~ 10,000 Hz (±5%), 1 ~ 15,000 Hz (±10%)

Resonant Frequency: 55 kHz

Transverse Sensitivity: ≤3%(30Hz)

Magnetic Sensitivity: 0.1g/T

Acoustic Sensitivity: 0.001 g (154 dB)

Base Strain Sensitivity: 0.001g/με

Temreture Transient Sensitivity: 0.05g/°C

Temperature Range: −54 ~ +150 °C

Temperature Deviation: ±5%

Sensing Element: P–10

Capacitance: 1,600 pF

Output Connector: M5 Side

Housing Material: Stainless Steel

Sealing: Welded

Weight: 17

Size: Φ16×18

Mounting: M5(Female)

Recommended Mounting Torque: 0.5 - 3.5 Nm
