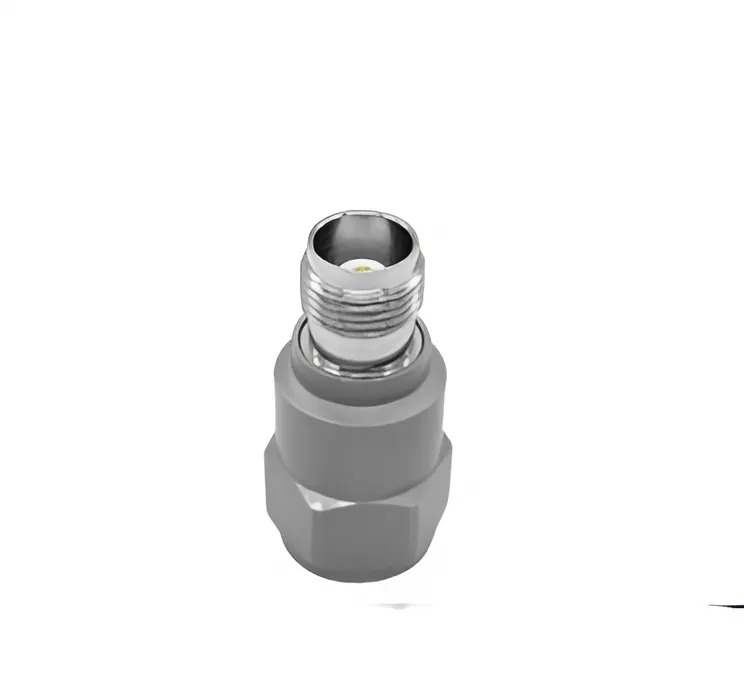

YMC PIEZOTRONICS YMC 252A100 Accelerometer for Handheld Vibration Meter (100 pC/g, ±1000 g pk)

Sensitivity (±10%): 100 pC/g

Measuring Range: ±1000 g pk

Overload Limit (Shock): ±5,000 g pk

Resolution: –

Excitation Voltage: –

Excitation Current: –

DC offset: –

Frequency Range (±10%): 1 ~ 8 kHz

Frequency Range (−3dB): 0.5 ~ 10 kHz

Resonant Frequency: 30 kHz

Temperature Range: −54 ~ +150 °C

Sensing Element: Ceramic/Shear

Output Connector: TNC

Housing Material: Stainless Steel

Housing Isolation: –

Sealing: Welded

Weight: 31 g

Size: Φ16.5×35 mm

Mounting: M5(Female)
