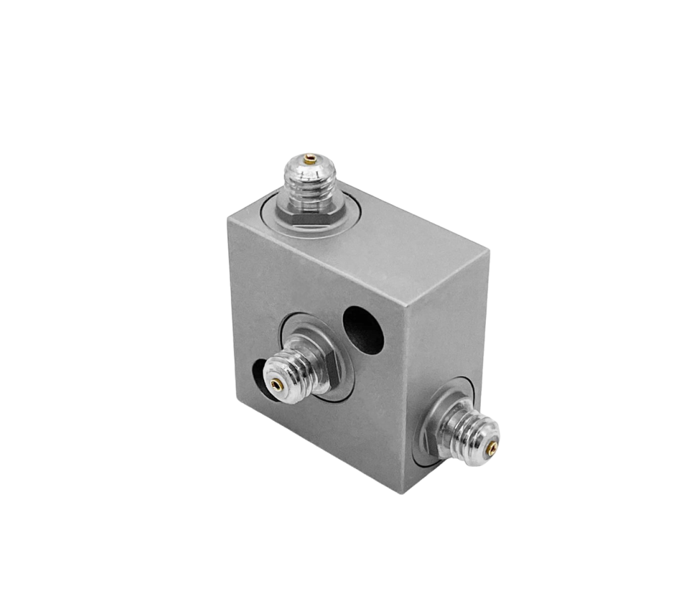

YMC PIEZOTRONICS YMC 247A01 High Shock PE Accelerometer (1 pC/g; ±5,000g pk)
ModelYMC 247A01
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Sensitivity pC/g: 1 pC/g
Measuring range g pk: ±5,000
Non–linearity %: ±5
Frequency Range (±1dB) Hz: 8,000
Resonant Frequency kHz: 30
Temperature Range℃: –40℃ ~ +65℃
Sensing Element: Ceramic/Shear
Output Connector: (3)M5/Integral Cable (M5)
Electronic Isolation Ω: _
Housing Material: High Strength Stainless Steel
Sealing: Epoxy glue
Weight (g): 40
Size (mm): 22x22x10
Mounting: (2)Φ5 (Thru-hole)
