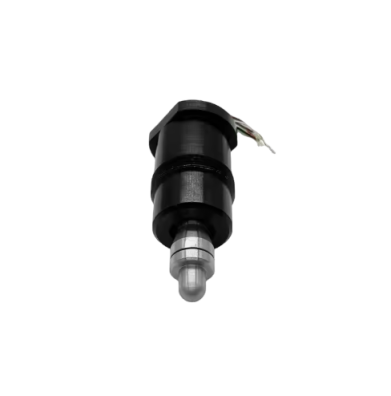

YMC PIEZOTRONICS YMC 153A25 Accelerometer for Handheld Vibration Meter (25 mV/g, ±50g pk)

Sensitivity (±10%): 25 mV/g

Measuring Range: ±50 g pk

Overload Limit (Shock): ±1,000 g pk

Resolution: 2 mg rms

Excitation Voltage: ±5 VDC

Excitation Current: ±5 VDC

DC offset: ±5 VDC

Frequency Range (±10%): 1 ~ 8 kHz

Frequency Range (−3dB): 0.5 ~ 10 kHz

Resonant Frequency: 30 kHz

Temperature Range: −40 ~ +85 °C

Sensing Element: Ceramic/Shear

Output Connector: 4 Conductors Cable

Housing Material: Hard Aluminum Oxide

Housing Isolation: ≥10⁸ Ω

Sealing: Epoxy Glue

Weight: 37 g

Size: Φ24×45 mm

Mounting: M5 (With Probe)

Datasheet
