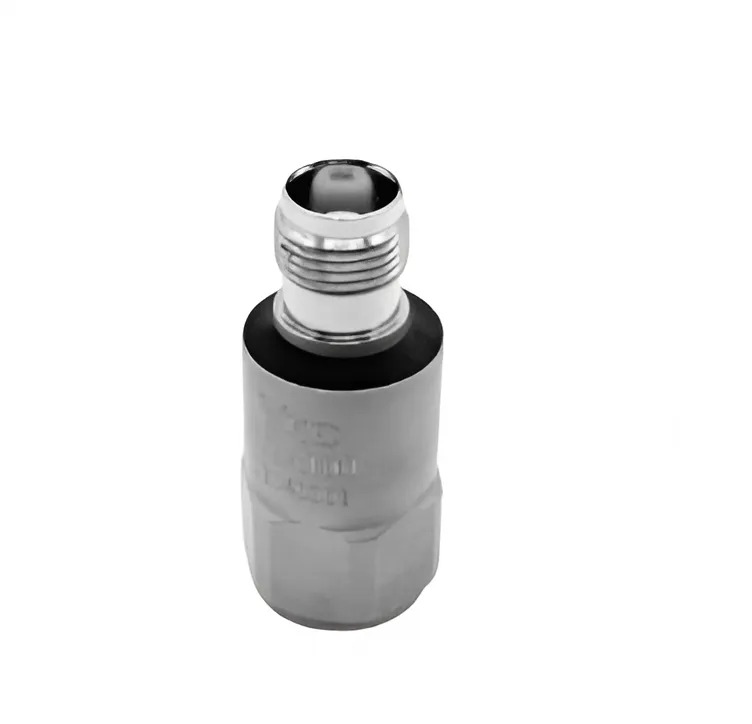

YMC PIEZOTRONICS YMC 152A100G Accelerometer for Handheld Vibration Meter (100 mV/g, ±50 g pk)

Sensitivity (±10%): 100 mV/g

Measuring Range: ±50 g pk

Overload Limit (Shock): ±5,000 g pk

Resolution: 0.5 mg rms

Excitation Voltage: 18 – 28 VDC

Excitation Current: 1 – 10 mA

DC offset: 10 – 14 VDC

Frequency Range (±10%): 1 ~ 8 kHz

Frequency Range (−3dB): 0.5 ~ 10 kHz

Resonant Frequency: 30 kHz

Temperature Range: −54 ~ +121 °C

Sensing Element: Ceramic/Shear

Output Connector: TNC

Housing Material: Stainless Steel

Housing Isolation: ≥10⁸ Ω

Sealing: Welded

Weight: 36 g

Size: Φ16.5×40 mm

Mounting: M5(Female)
