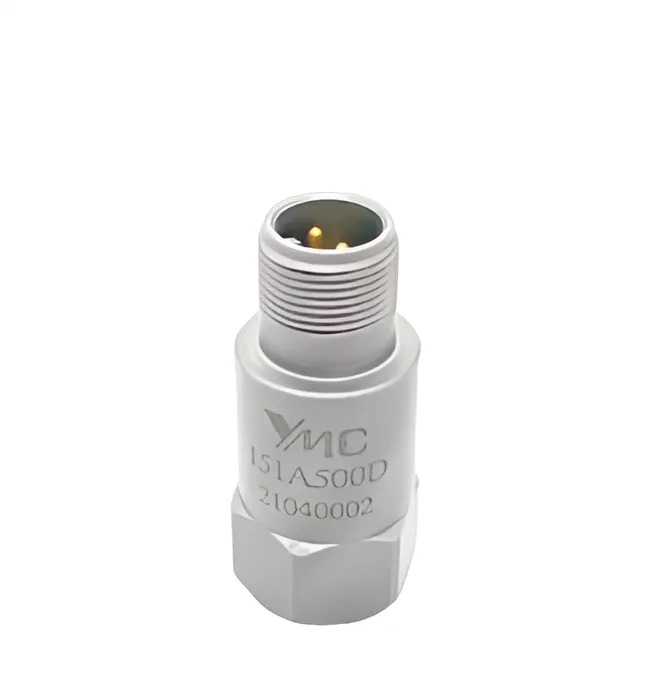

YMC PIEZOTRONICS YMC 151A500D Industrial IEPE Accelerometer (500 mV/g, ±10 g pk)

Sensitivity (±10%): 500 mV/g

Measuring Range: ±10 g pk

Overload Limit (Shock): ±3,000 g pk

Resolution: 0.1 mg rms

Excitation Voltage: 18 – 30 VDC

Constant Current: 2 – 10 mA

Bias Voltage: 11±1.5 VDC

Frequency Range (±10%): 0.6 ~ 6 kHz

Frequency Range (−3dB): 0.1 ~ 10 kHz

Resonant Frequency: 16 kHz

Temperature Range: −54 ~ +121 °C

Sensing Element: Ceramic/Shear

Output Connector: 2-pin MIL–C–5015

Housing Material: 316L Stainless Steel

Case Isolation: ≥10⁸ Ω

Sealing: Epoxy Glue

Weight: 80 g

Size: Φ22×52 mm

Mounting: 1/4–28(Female)
