YMC PIEZOTRONICS YMC 147A01 High Shock IEPE Accelerometer (1.0 mV/g; ±5,000g pk)

Sensitivity (±10%) mV/g: 1.0 mV/g

Measuring range g pk: ±5,000

Resolution mg rms: 20

Frequency Range (±1dB) Hz: 1~8,000

Resonant Frequency kHz: 30

Temperature Range℃: –40℃ ~ +70℃

Sensing Element: Ceramic/Shear

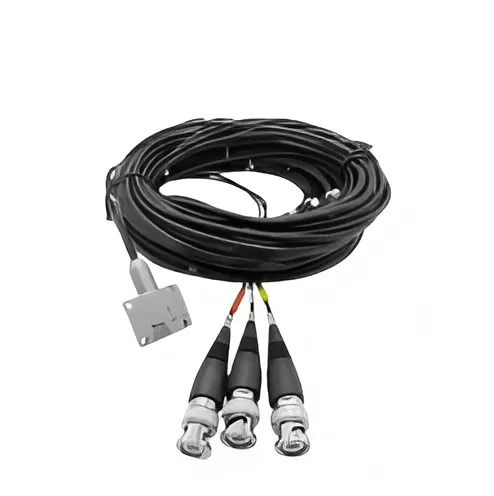

Output Connector: Integral Cable (BNC)

Electronic Isolation Ω: Case Isolation ≥10⁸ Ω

Housing Material: Thép không gỉ cường độ cao

Sealing: Welded

Weight (g): 40

Size (mm): 25.4x12x22

Mounting: (4) Φ3 (Thru-hole)

Datasheet
