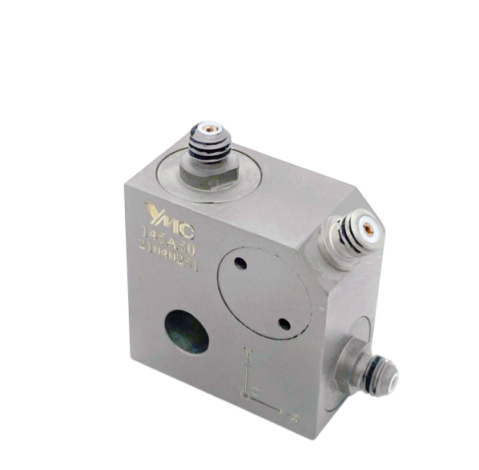

YMC PIEZOTRONICS YMC 145A100 General Purpose Triaxial IEPE Accelerometer (±50 g pk, 100 mV/g)

Sensitivity (±10%) mV/g: 100 mV/g

Measuring range g pk: ±50

Resolution mg rms: 0.05

Frequency Range Hz: 0.5~2k(±5%); 0.3 ~3k(±10%)

Resonant Frequency kHz: 10 kHz

Temperature Range℃: –40℃ ~ +121℃

Sensing Element: Ceramic/Shear

Output Connector: (3) M5

Housing Material: Titanium

Sealing: Epoxy glue

Weight (g): 45g

Size (mm): 25.4x25.4x14

Mounting: Φ5(Thru-hole)/M6 Thread(bottom)(Z axial); (2)M5(Female)(X,Y axial)
