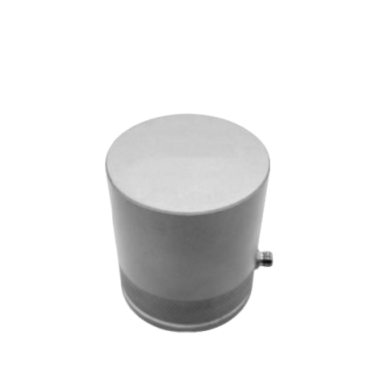

YMC PIEZOTRONICS YMC 132A05 High Sensitivity Single Axial Accelerometer (±1 g pk, 5.0 V/g, Φ36.5x41.5)

Sensitivity (±10%):  5.0 V/g

Measuring range g pk: ±1

Resolution mg rms: 0.005

Frequency Range Hz: 0.5~500(±5%); 0.1~800(±10%)

Resonant Frequency kHz: 3 kHz

Temperature Range℃: –40℃ ~ +121℃

Sensing Element: Ceramic/Shear

Output Connector: M5 side

Electronic Isolation Ω: Ground Isolation≥10^8

Housing Material: Stainless Steel

Sealing: Welded

Weight (g): 280g

Size (mm): Φ36.5x41.5

Mounting:  M8(Female)

Datasheet
