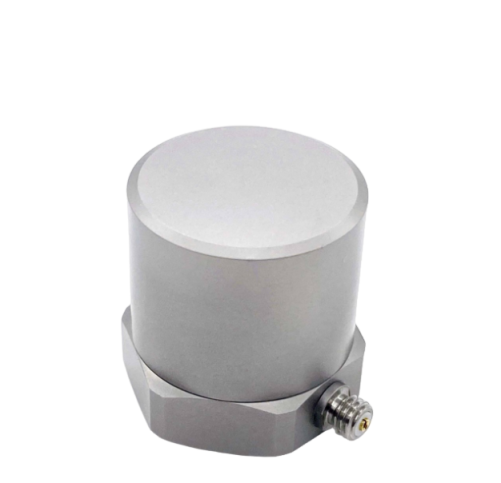

YMC PIEZOTRONICS YMC 122A200 General Purpose Single Axial IEPE Accelerometer (200 mV/g, ±25g pk)
ModelYMC 122A200
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Sensitivity mV/g: 200 mV/g
Measuring range g pk: ±25
Resolution mg rms: 0.2
Frequency Range Hz: 0.5~6kHz (±5%); 0.3~8kHz (±10%)
Resonant Frequency kHz: 15
Temperature Range℃: –40℃ ~ +121℃
Sensing Element: Ceramic/Shear
Output Connector: M5 Side
Housing Material: Stainless Steel
Sealing: Epoxy glue
Weight (g): 30
Size (mm): Φ18 x 26 mm
Mounting: M5 (Female)
