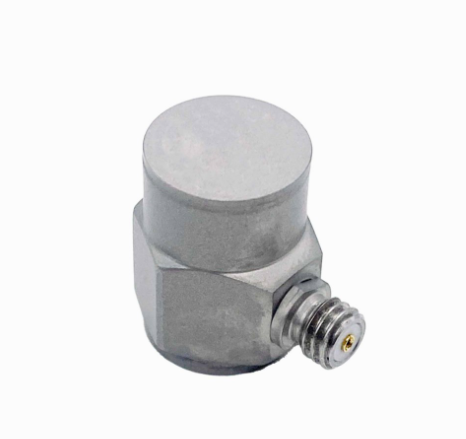

YMC PIEZOTRONICS YMC 122A20 General Purpose Single Axial IEPE Accelerometer (20 mV/g, ±250g pk)
ModelYMC 122A20
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Sensitivity pC/g: 20 mV/g
Measuring range g pk: ±250
Resolution mg rms: 1.5
Frequency Range Hz: 2~10kHz (±5%); 1~12kHz (±10%)
Resonant Frequency kHz: 40
Temperature Range℃: –40℃ ~ +121℃
Sensing Element: Ceramic/Shear
Output Connector: M5 Side
Housing Material: Stainless Steel
Sealing: Epoxy glue
Weight (g): 12
Size (mm): Φ11 x 16.3 mm
Mounting: M5 (Female)
