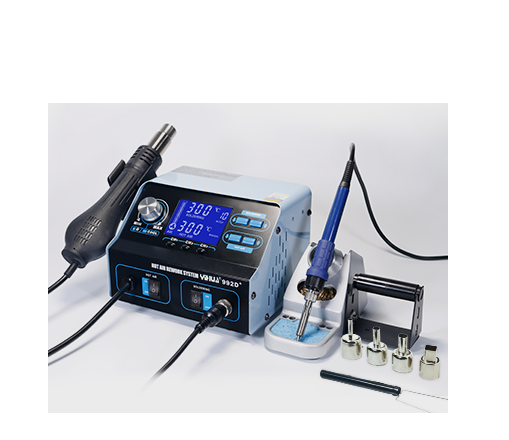

YIHUA YH-992D+ Soldering desoldering station with hot and cool air and 3 mode (720W±10%)

Machine Parameters

Rated voltage: AC 220V±10% 50Hz

Total Power: 720W±10％（max）

300℃ Constant Temperature Power (High-Speed PID Programmed to Energy Savings): 250W±10％

Operating Environment: 0～40℃ Relative humidity＜80％

Storage temperature: －20～80℃ Relative humidity＜80％

Dimensions: 31.5*22*22cm

Weight: 3.5KG

Performance Parameter

Hot Air Gun

Operating Voltage: AC 220V±10% 50Hz

Output power: 650W

Temperature Range: 100℃～480℃

Air Supply Mode: Brushless-Motor Fan

Airflow: 120L/min(max)

Temperature stability: ±1℃ （static）

Display Mode: LCD

Calibration Mode: PID Digitally Programmed Calibration

PID Temperature Calibration Cycle: Rapid 20ms

Heating Core: Ceramic Framed Heating Core

Soldering iron

Operating Voltage: AC 26V±10% 50Hz

Output power: 75W

Temperature Range: 200℃～480℃

Temperature stability: ±1℃ （static）

Display Mode: LCD

Calibration Mode: PID Digitally Programmed Calibration

PID Temperature Calibration Cycle: Rapid 20ms

Heating Core: Imported High-Powered Heating Core

Tip-to-Ground Impedance: ＜2Ω

Tip-to-Ground Voltage: ＜2mV
