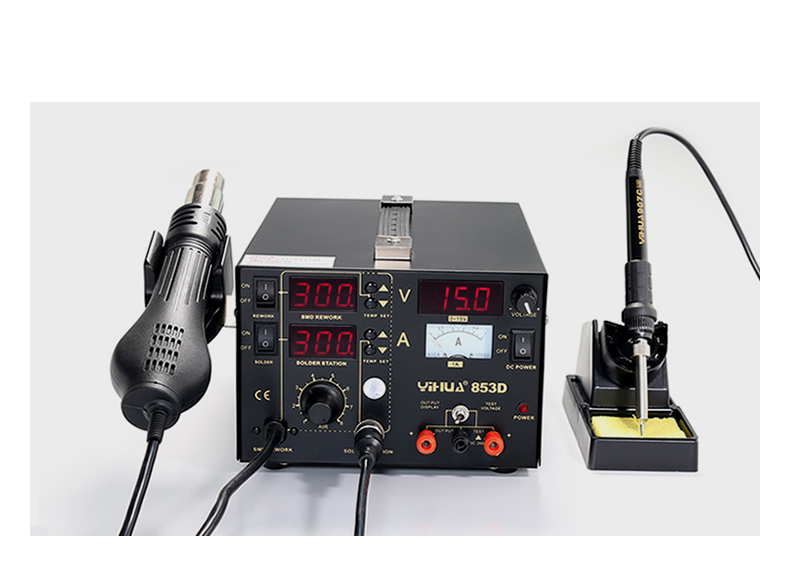

YIHUA YH-853D Rework Station (15V 1A)

Dual Core Microcomputer Processor

This Unit is ESD Safe

Total Power Consumption: 765 Watts

Air Flow Type: Brushless Fan With Soft Air

Max Air Flow Volume: 120L/min

Hot Air Gun: 700 Watts - Temperature Range 212° F ~ 896°F/100°C ~ 480°C with Auto Cool Down Safety Feature

Hot Air Gun Temperature Stability: ±1.8°F/1.0°C

Hot Air Gun Tube Material: 100% Silicone (Virtually No Memory)

Soldering Iron: 45 Watts - Temperature Range 392°F ~ 896°F/200°C ~ 480°C

Soldering Iron Temperature Stability: ±3.6°F/2.0°C

Soldering Iron Cord Material: 100% Silicone (Virtually No Memory)

DC Power Supply Output Voltage: 0 ~ 15 Volts

DC Power Supply Output Current: 0 ~ 1 Amps

Load Stability: 0.01% ± 2mv

Temperature Coefficient: 300 ppm/°C

Working Environment: 0°F ~ 122°F/ 0°C ~ 50°C

Storage Environment: -68°F ~ 176°F/-20°C ~ 80°C

Product Dimensions: 7.40"W x 5.75"H x 9.80"D

Shipping Weight: 5.5 KG

Actual Unit Weight: 4.8 KG
