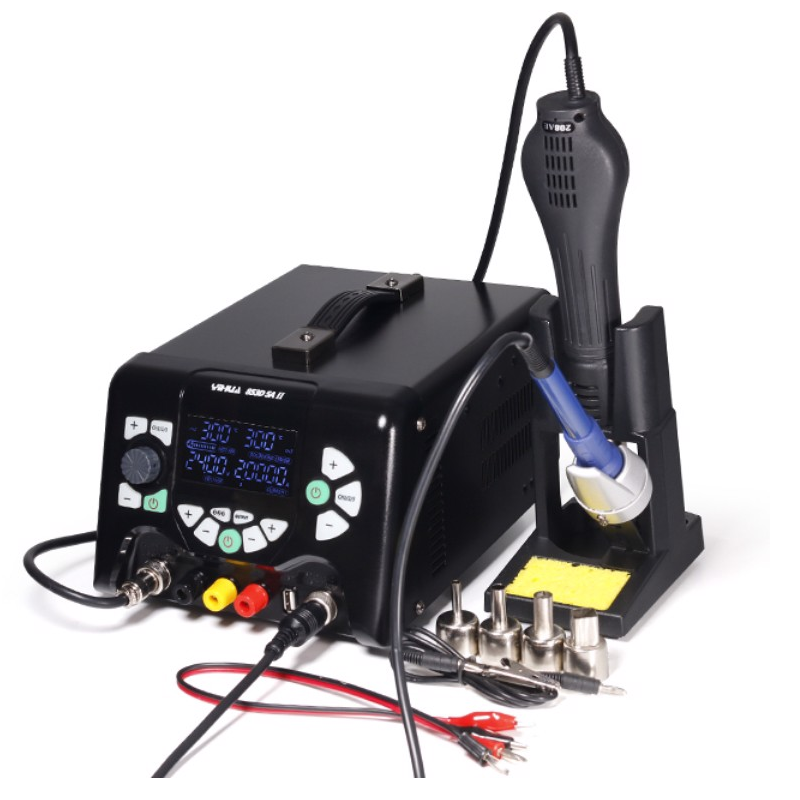

YIHUA YH-853D II Hot Air Rework Soldering Iron Station and DC Power Supply (30V 5A)

Power supply: 220 – 240V AC 50/60Hz

Total power: 920W

Hot air gun power: 650W

Hot air gun temperature range: 100°C ~ 480°C

Heating Core: Imported High-Powered Heating Core

Gun type: Brushless fan gentle air

Air Volume: 120l/min (max)

Soldering iron power: 60W

Soldering iron temperature range: 200°C ~ 480°C

Heating Core: Ceramic Framed Heating Core

Power supply output power:: 150W

USB output Power: 10W (5V - 2A)

Output voltage: 0 ~30V DC

Output current: 0 ~ 5A

Display: LCD

Dimensions: 250 x 190 x 137 mm

Weight: 4.5kg

【3 in 1 design】it combines together in one common unit: soldering station, rework station and DC stabilized switching power supply(minimum current display unit is 0.1mA), these three functions can be used independently or simultaneously.

【PID Temperature Control Technology】The machine detects the actual temperature at high speed and corrects it. The temperature compensation speed is fast and the error is small.

【Humanized Functions】Celsius/Fahrenheit conversion: Sleep function: Digital temperature correction: Cool / hot air conversion at the flip of a button

【No Air Protection】If the fan of hot air gun stops unusually during the use, the program will automatically set an alarm and cut off the power supply to the heating core to ensure safety.
