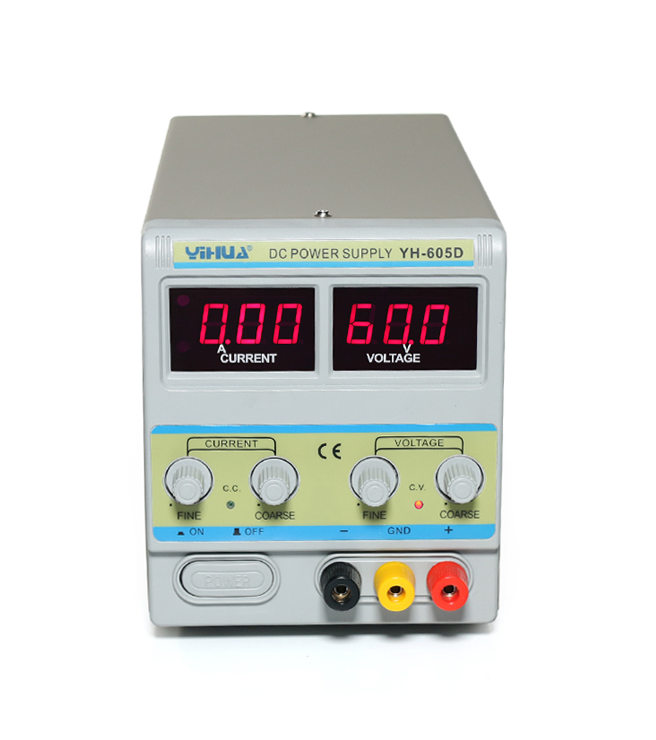

YIHUA YH-605D DC Power Supply (60V 5A)

Machine parameters

Rated voltage: AC220V 50Hz

Power of complete machine: 380W

Operating environment: 0～40℃ relative humidity ＜80％

Storage Temperature: －20～80℃ relative humidity ＜80％

Dimensions: 255*130*150mm

weight: 6.1KG

Specifications

Output voltage: Adjustable continuously within 0～60V

Output current: Adjustable continuously within 0～5A

(current limitation adjustment when above 0.2A)

Output power: 300W

Source effect: 1mV

Load effect: ≤0.33%

Ripple noise: ≤3mVrms（5Hz ~ 1MHz）/≤3mArms

Display accuracy: 0.1V/0.1A/1mA

Protection mode: Over-current, short circuit, over-temperature protection

Dissipation mode: air cooling
