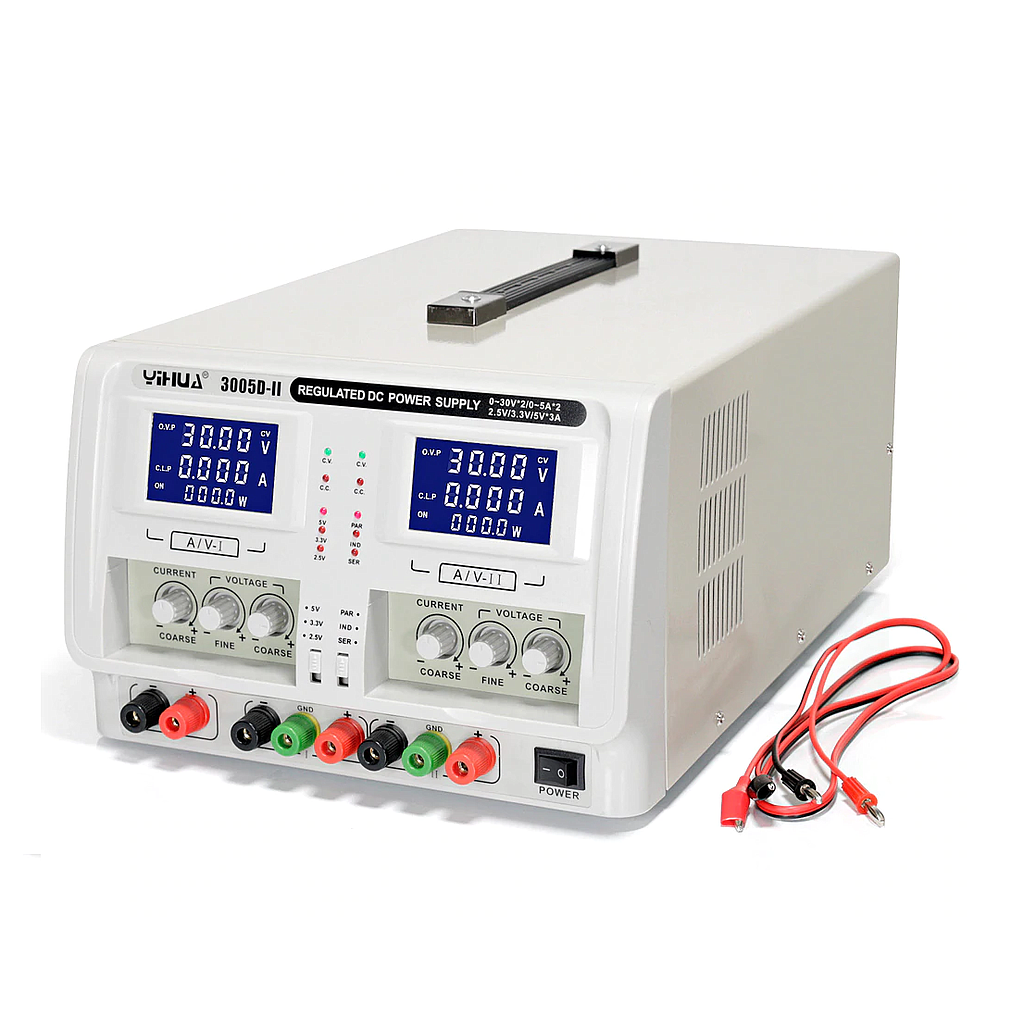

YIHUA YH-3005D-II Dual adjustable DC power supply (30V 5A)

Output Voltage: Continuously adjustable between 0-30V

Output Current: Continuously adjustable between 0-5A

Power Effect: CV≤0.01%+1mV CC≤0.2%+1mA

Load Effect:

CV≤0.01%+5mV (I≤3A) CC≤0.2%+5mA (I≤3A)

CV≤0.01%+7mV (I>3A) CC≤0.2%+10mA (I>3A)

Ripple Noise (5Hz-1MHz):

CV≤0.5mVrms (I≤3A) CC≤3mArms (I≤3A)

CV≤1mVrms (I>3A) CC≤5mArms (I>3A)

Voltage Accuracy: ±0.5%rdg+2 characters

Voltage Accuracy: ±0.5%rdg+2 characters

Display Resolution: ±0.5%rdg+2 characters

Supply Voltage: 220V±10% 50Hz (110V±10% 60Hz if required)

Operating Conditions: Temperature 0℃~40℃ / Relative humidity <80%

Storage Conditions: Temperature -20℃~80℃ / Relative humidity <80%

Operating Method: CV/CC

Protection Methods: Current-limiting buck, short circuit protection, overheating protection

Cooling Method: Cool air

Dimensions: L370×W250×H160mm

Rated Output Power: 315W
