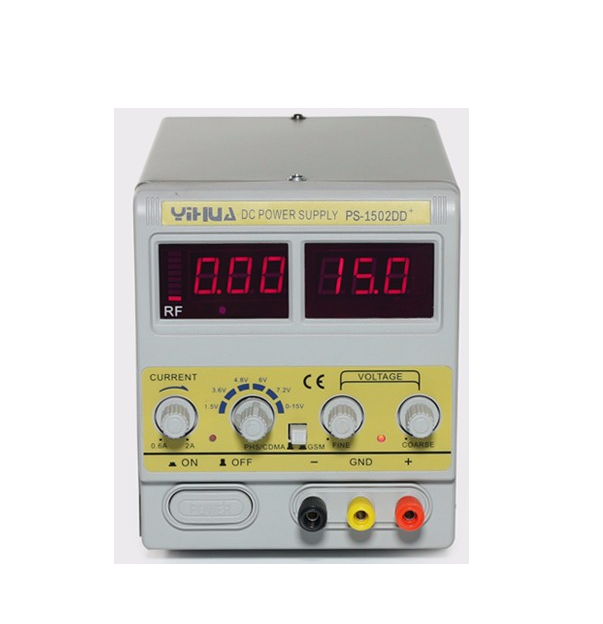

YIHUA YH-1502DD+ Communication Maintain DC Power Supply (15V 2A)

Rated voltage: AC220V±10% 50Hz

Operating environment: 0～40℃ relative humidity＜80％

Storage temperature: －20～80℃ relative humidity＜80％

Dimensions of the machine body: 17*33*21CM

Weight: 1.06KG

Performance parameters

Output voltage: Adjustable continuously within 0～15V

Output current: Adjustable continuously within 0～1A

(current limitation adjustment when above 0.2A)

Output power: 15W

Source effect: ≤1mV

Load effect: ≤0.33%

Ripple noise: ≤3mVrms（5Hz ~ 1MHz）/≤3mArms

Display accuracy: 0.1V/0.1A/1mA

Protection mode: Over-current, short circuit, over-temperature protection

Dissipation mode: Air cooling
