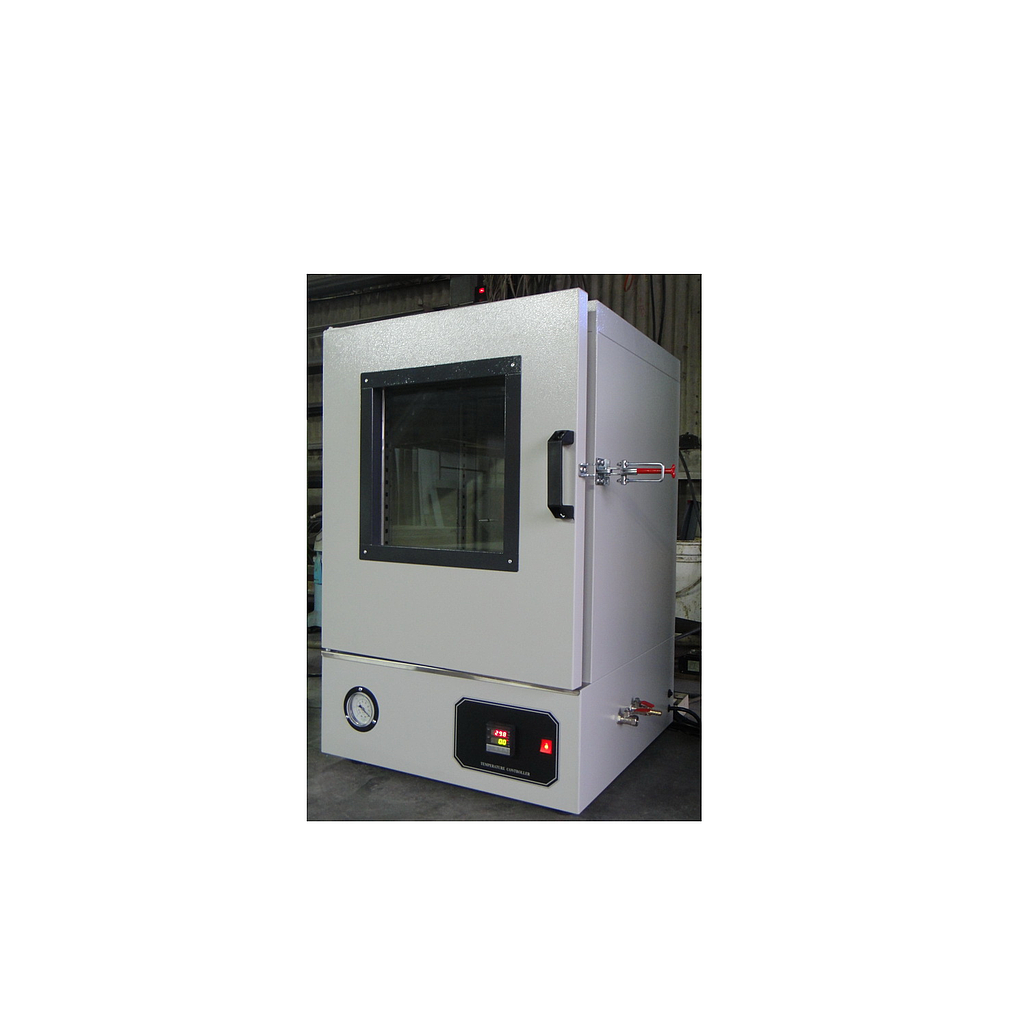

YI FENG OVV-40 Vacuum Oven Machine (50°C ~ 200°C)

Net weight: 89kg

Internal dimensions: W40xD40xH40cm / Internal volume: 64L

External dimensions: Approx. W53xD55xH87cm

Overall cabinet dimensions: W56xD63xH87cm

Internal material: SUS304# stainless steel plate

External material: SECC galvanized steel plate + baked enamel

Temperature range: 50°C ~ 200°C

The machine's ambient temperature must be ≤ 25°C.

Temperature regulator: Computerized PID automatic calculation thermometer. SSR control output.

Heating element: Stainless steel heating element 1.6KW

Internal circulation without air

Door seal tightness: High-temperature-resistant silicone, good airtightness, not easily deformed.

Control panel: Positioned below the machine

Observation window: High-temperature-resistant, negative pressure-resistant safety tempered glass * 1 window

Shelves: Adjustable height stainless steel 304# * 2

Safety device: Electric overload protector. Overheat protector (thermometer with built-in alarm for heating shut-off during overheat)

Power supply: 220V / single-phase / 8A / T-type plug / 1.5-meter-long cable.
