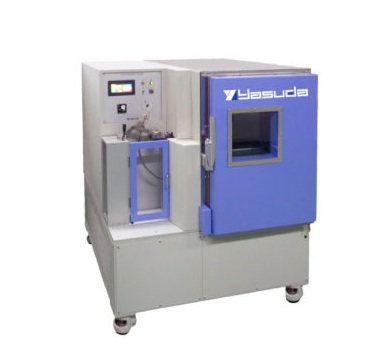

Yasuda 181-L Film impact tester (With refrigerating machine)

Capacity: 0 to 1.5 Ｊ (Scale 0.05 J), 0 to 3.0 Ｊ (Scale 0.1 J) (2 ranges) 0 to 3.0 J (Scale 0.1 J), 0 to 6.0 J (Scale 0.2 J)

Impact Head: Hemispherical shape, R12.7 mm, R6.35 mm

Lift-Up Angle: 60°, 90° (Loại 2 mức)

Specimen: φ80 mm

Clamp: Inner φ60 mm

Temperature Range:-35 °C to 60 °C (Refrigerator)

Option: Digital Display Ver

Power Source: AC 200 V, 3-Phase, 20 A, 50/60 Hz

Dimensions/ Weight (Approx.): W600 × D190 × H460 mm, 32 kg
