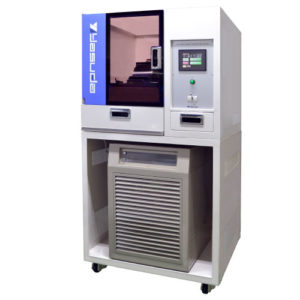

Yasuda 121-R Brittleness Temperature Tester (With refrigerating machine)

Hangings: 5 Hangings (1 Holder), Automatic Operation System

Specimen: W6.0 ± 0.4mm, L38± 0.2 mm , T2.0 ± 0.2 mm (Type A)

Striking Edge: Top R1.6 ± 0.1 mm, Distance to Chuck 6.4 ± 0.2 mm, Distance to Striking Point 8.0 ± 0.2 mm

Striking Speed: 2.0 ± 0.2 m/s

Temperature Range: Room Temperature to -70 °C (Refrigerator & Refrigeration Medium); (Option: Combined with Liquid Nitrogen -100 °C)

Refrigeration Medium Amount: Approx. 15 L

Accessories: Tightening Rod, Torque Driver, Specimen Cutter

Option: Rotary Holder (5 Hangings × 4 Holders), Specimen Holder (Type B)

Power Source: AC 200 V, 3-Phase, 30 A, 50/60 Hz

Dimensions/ Weight (Approx.): W920 × D950 × H1,800 mm/ 435 kg
