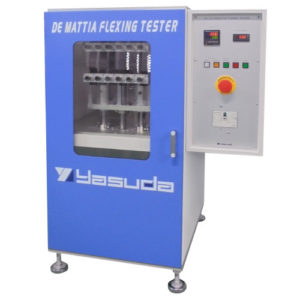

Yasuda 119 De mattia De mattia Flex-cracking and crack growth tester

Hangings: 6 Hangings

Specimen: W25 ± 1 mm, L140 to 155 mm, T6.30 ± 0.15 mm, Groove of R2.38 ± 0.03 mm

Chuck Distance: Max. 75 + 1 mm

Flexing Distance: Max. 60 mm (Standard 57 + 0.5 mm)

Flexing Speed: 300 ± 10 times/min

Counter: 6 Digits Preset Counter, 6 Digits Running Counter

Accessories: Specimen Setting Gauge, Notching Blade

Option: Notching Device

Power Source: AC 200 V, 3-Phase, 15 A, 50/60 Hz

Dimensions/ Weight (Approx.): W700 × D610 × H980 mm/ 180 kg
