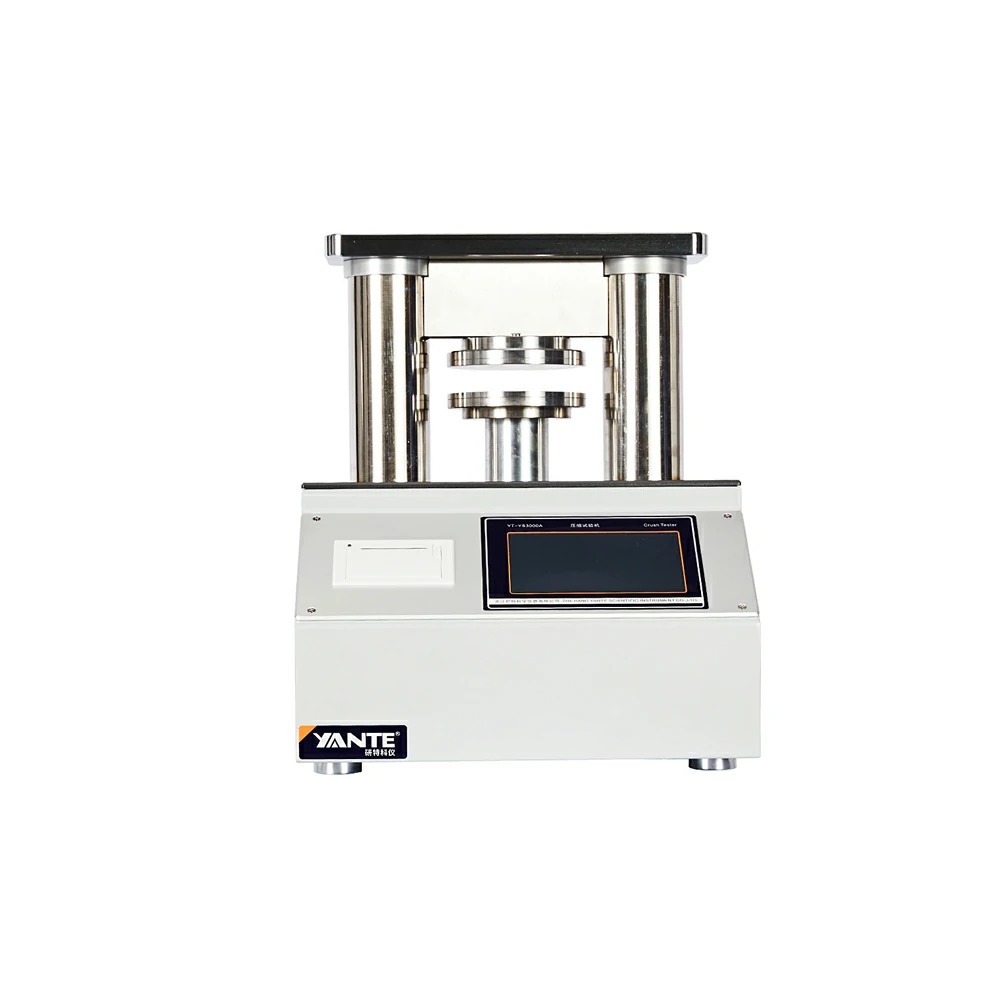

Yante YT-YS3000A Crush Tester (10～3000N)

Power Supply: AC 100～240V, 50Hz/60Hz 100W

Working Environment: Temperature (10~35)℃, Humidity≤ 85％

Display: 7 inch color touch screen

Measuring Range: (10～3000) N, customizable (10～5000) N

Indication error: ±0.5％ (Range 5%～100%)

Indication resolution: 0.1N

Indication variability: ≤0.5％

Test speed: (12.5±1) mm/min, (1～500) mm/min adjustable

Parallelism of upper and lower platens: < 0.02mm

Maximum distance between upper and lower platens: 80mm

Print: Built-in thermal printer

Communication Interface: RS232 (default) (USB, WIFI optional)

Dimension: 415×370×505 mm

Net weight: 58 kg around
