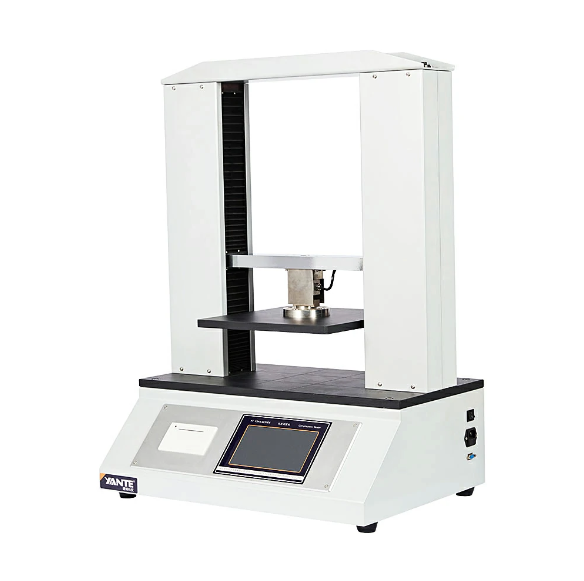

Yante YT-YS05AKN Paper Bowl Compression Tester (5N～5kN)

Power Supply: AC100～240V，50/60Hz 100W

Working Environment:

Temperature: 10~35℃

Humidity: ≤85％

Display: 7 inch color touch screen

Measuring range: 5N～5kN

Indication accuracy: ±1％(Range 5%～100%)

Measured Area: 300×300 mm

Work Capacity: 5～300 mm

Parallelism Between Plates: ≤ 1:2000 (0.15mm)

The pressure plate shakes laterally: ≤0.05mm

Press Speed: 12.5±2.5 mm/min（1～500mm/min adjustable）

Return Speed: 1～500 mm/min adjustable

Print: Built-in thermal printer

Communication Interface: RS232(Default) (USB, WIFI optional)

Dimension: 545×380×825 mm

Net Weight: 62.5kg
