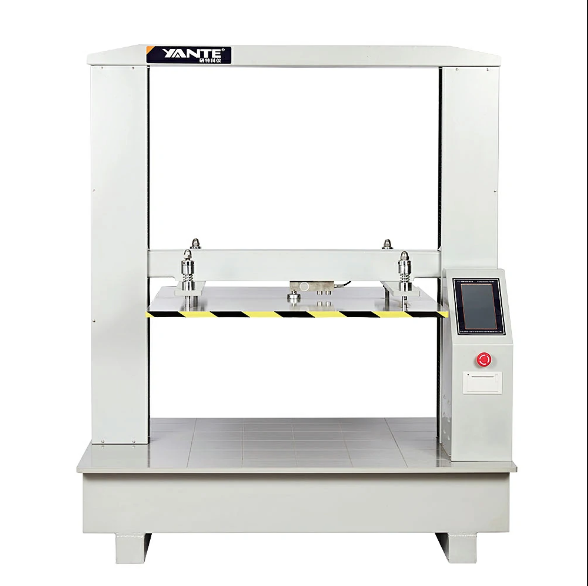

Yante YT-YS-10KN Box Compression Tester (0～10kN)

Power Supply/Motor: AC100-240V, 50Hz/60Hz 400W /DC stepper motor (Chinese brand)

Working Environment:

Temperature: 10~35℃

Humidity: ≤85％

Display: 7 inch color touch screen

Measuring range: (0～10)kN

Resolution: 1N

Indication accuracy: ±1% (Range 5%～100%)

Measured Area: 600×600mm/800×800mm/1000×1000mm/1200×1200mm customizable

Work Capacity: 600mm/800mm/1000mm/1200mm/1500mm customizable

Press Speed: 10mm/min (1～99)mm/min(Arbitrary adjustment)

Parallelism Between Plates: ＜2:1000 （Example: pressure plate 1000×1000mm, ＜2mm）

Return Speed: (1～120)mm/min

Print: Built-in thermal printer

Communication Interface: RS232(Default) (USB, WIFI optional)

Datasheet
