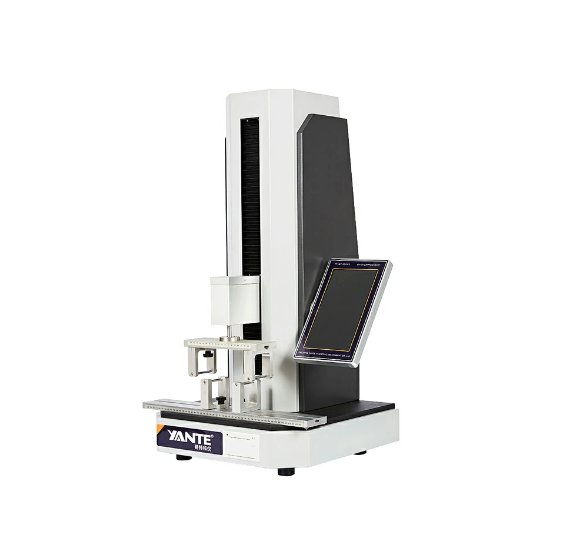

Yante YT-WT 4-Point Bending Stiffness (1～300N)

Power Supply: AC100～240V，50/60Hz 100W

Working Environment:

Temperature: 10~35℃

Humidity: ≤85％

Display: 10 inch color touch screen

Measuring range: 1～300N

Indication resolution: 0.01N

Indication error: ±0.5% (Range 5%～100%)

Sample width: Single corrugated and double corrugated 100mm, triple corrugated 50mm

Test stroke: 400mm

Test speed: 1～500 mm/min (Can be adjusted arbitrarily)

Print: Built-in thermal printer

Communication Interface: RS232 (Default) (USB, WIFI optional)

Dimension: 550×470×930 mm

Net Weight: 72kg around
