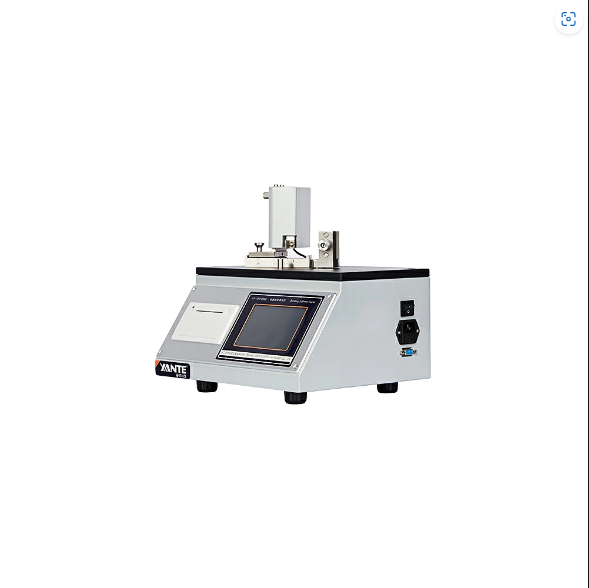

Yante YT-TDY10000 Bending Stiffness Tester (15～10000 mN)

Power Supply: AC(100～240)V，(50/60)Hz 50W

Working Environment:

Temperature (10~35)℃

Humidity ≤85％

Measuring range: 15～10000 mN

Indicating Accuracy: ≤50mN±0.6mN, others±1%

Resolution: 0.1mN

Indication Variation Accuracy: ±1％(Range 5%～100%)

Bending length: （50/25/20/15/10/5）±0.1mm

Bending angle: 7.5±0.3°or 15±0.3°

Bending speed: 5±0.1°/s（1~100°/s adjustable）

Print: Built-in thermal printer

Communication Interface: RS232

Dimension: 315(L)×245(W)×300(H) mm

Net Weight: 12kg

Datasheet
