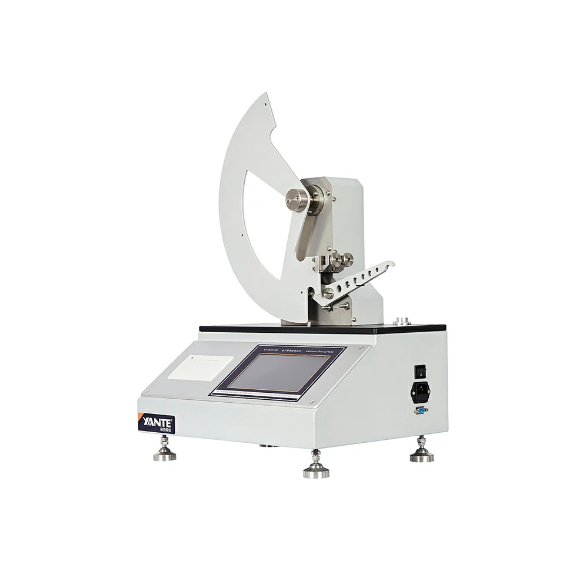

Yante YT-SLD1000 Electronic Tearing Tester (50～8000mN, 8000～16000mN)

Power supply: AC（100～240）V, 50Hz/60Hz 50W

Working environment:

Temperature(10~35)℃

Humidity≤ 85％

Display: 7 inch color touch screen

Measuring range:

A：(50～8000mN)

B: (8000～16000mN)

Minimum index: 0.1mN

Indication error: ±1％

Indication variability: ≤1％

Tear arm: （104±1）mm

Torn initial angle: 27.5°±0.5°

Clamping distance between paper: (2.8±0.3）mm

Sample incision length: （20±0.5）mm

Print: Built-in thermal printer

Communication Interface: RS232 (default) (USB, WIFI optional)

Dimension: 415（L）×305(W)×615(H)mm

Net weight: 20kg around
