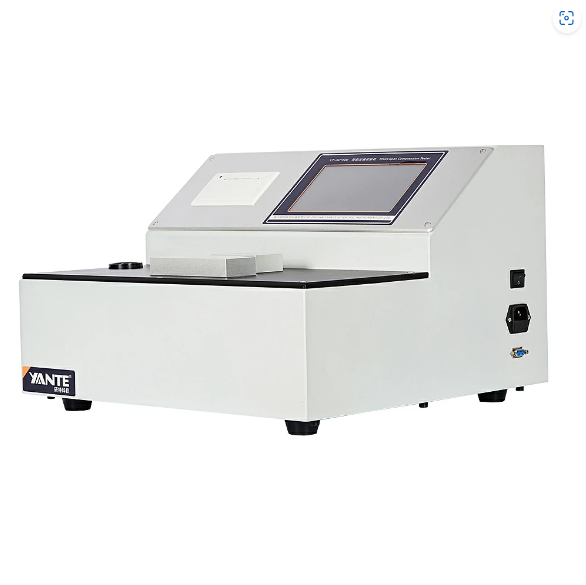

Yante YT-SCT500 Short Span Compression Tester (10～500N)

Power Supply: AC(100～240)V，(50/60)Hz 50W

Working Environment:

Temperature(10~35)℃

Humidity≤ 85％

Display: 7 inch color touch screen

Measuring range: （10～500） N

Specimen holding force: （2300 ± 500 ）N（Gauge pressure 0.3-0.45Mpa）

Resolution: 0.1N

Indication error: ±1％(Range 5%～100%)

Indication variability: ≤1%

Free spacing of specimen clamps: 0.70 ± 0.05 mm

Test speed: （3±1 ）mm/min (Relative moving speed of two fixtures)

Specimen holding surface size: 30×15 mm

Communication Interface: RS232(Default) (USB, WIFI optional)

Print: Built-in thermal printer

Gas source: ≥0.5MPa

Dimension: 530×425×305 mm

Net Weight: 34kg
