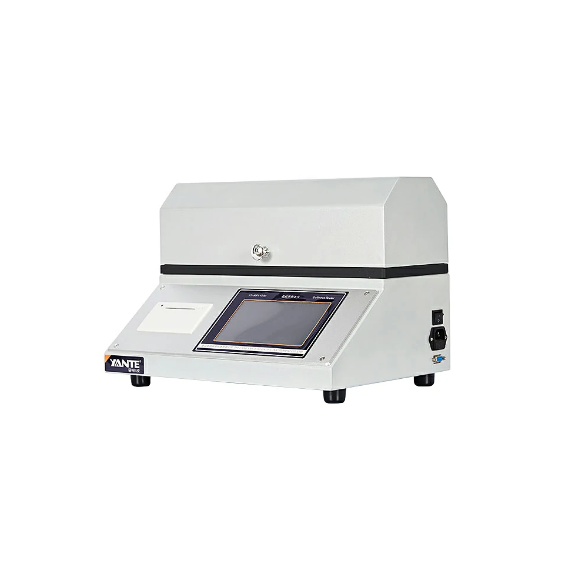

Yante YT-RRY1000 Softness Tester (10～1000mN)

Display: 7 inch color touch screen

Measuring range: 10～1000mN

Resolution: 0.1mN

Indication error: ±1% (Measuring Range 5%～100%)

Total probe stroke: 12±0.5mm (Process adjustable)

Probe indentation depth: 8mm

Test speed: 1.2±0.012mm/s (72±0.72 mm/min) (1-250 mm/min adjustable)

Specimen table gap width: 5/6.35/10/20mm (Four gears adjustable)

Slit parallelism error: ≤0.05mm

Probe centering error: ≤0.05mm

Print: Built-in thermal printer

Communication Interface: RS232 (default) (USB, WIFI optional)

Dimension: 425×290×300 mm

Net Weight: 20kg
