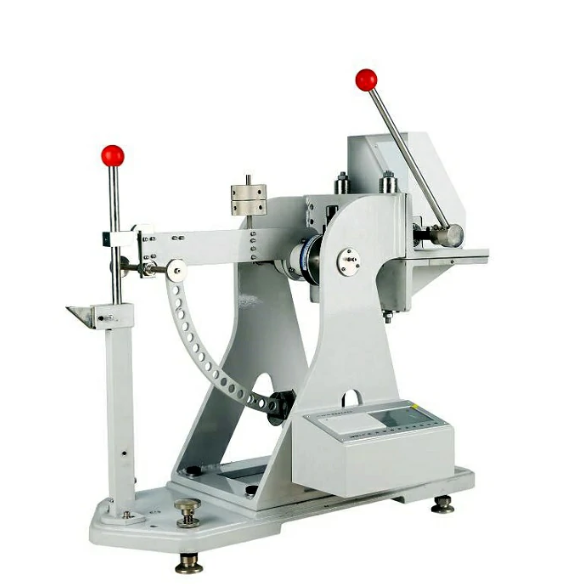

Yante YT-PRT48 Puncture Resistance Tester (≤48 J)

Power Supply: AC100～240V，50/60Hz 50W

Working Environment:

Temperature: 10~35℃

Humidity: ≤85％

Display: 5 inch color touch screen

Indication error:

A: ＜ 6 J Division value：±0.05J

B：＜ 12 J Division value：±0.1J

C：＜ 24 J Division value：±0.2J

D：＜ 48 J Division value：±0.5J

Resolution: 0.01 J

Measuring range: ≤48 J

Clamping pressure: 250～1000N

Friction sleeve resistance: ≤0.25J

Print: Built-in thermal printer

Communication Interface: RS232 / USB (Optional）

Dimension: 800×460×750 mm

Net Weight: 145kg around
