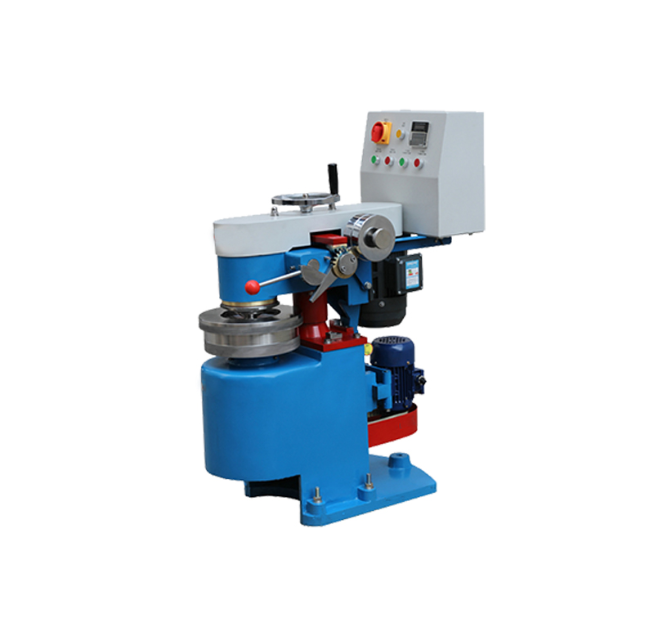

Yante YT-PFI Laboratory Beater (PFI Type) (3.33±0.1N/mm, 1.77±0.1N/mm, 4.89±0.1N/mm)

Slurry tank inner diameter: Φ250mm thickness 53mm

Flying knife rotor outer diameter: Φ200mm height 50mm knife thickness 5mm

Flying knife rotor motor: 1.1kW /380v

Adjusting distance of buckle clearance: 0~25mm

Slurry tank motor: 370W/380v

Count/timer display control range: 0-999999 (R, H, M, S)

Pulp pulp density: 0~50%, standard concentration 10%

Absolute dry pulp 5~40g, standard 10g, volume 450ml.

Beating pressure: (3.33±0.1) N/mm blade length; (1.77±0.1) N/mm blade length; (4.89±0.1)/mm blade length

Dimension: 900(L)×400(W)×1100(H)mm

Net Weight: 230Kg
