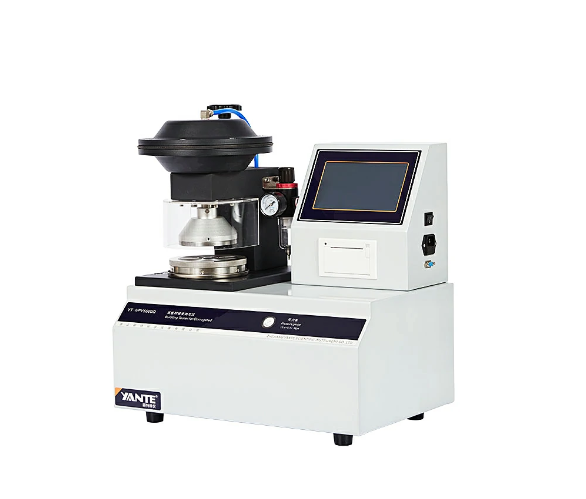

Yante YT-NPY5600Q Bursting Tester for Corrugated (250～5600kPa)

Power Supply: AC220V±10%，(50/60)Hz，150W

Working Environment:

Temperature: 10~35℃

Humidity: ≤85％

Measuring range: 250～5600kPa

Indication error: ±0.5% (Range 5%～100%)

Resolution : 1kPa

Refueling speed: 170±15 ml/min

Air pressure adjustment: 0.4 MPa

Hydraulic system tightness: Upper limit of measurement，1min Pressure drop＜10％Pmax

Upper clamp ring aperture: 31.5±0.05 mm

Lower clamp ring aperture: 31.5±0.05 mm

Print: Built-in thermal printer

Communication Interface: RS232(Default) (USB, WIFI optional)

Dimension: 470×315×520 mm

Net Weight: 56kg around
