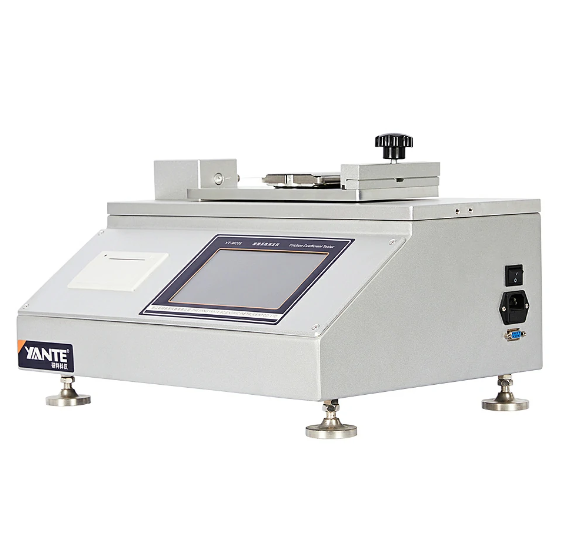

Yante YT-MC05 Friction Coefficient Tester (0.05 ～ 10N)

Power Supply: AC100～240V，50/60Hz 100W

Working Environment:

Temperature: 10~35℃

Humidity: ≤85％

Display: 800×480 7 inch color touch screen

Force measuring range: 0.05～10N

Resolution: 0.001N

Slider size: 63×63 mm

Slider weight: 200±2g（For Paper 800g customizable）

Test bench size: 200×455 mm

Measurement accuracy: ±0.5% (Range 5%～100%)

Slider movement speed: 100±10 mm/min

Slide stroke: 100 mm

Communication Interface: RS232 (default) (USB, WIFI optional)

Dimension: 460×330×280 mm

Net Weight: 17.5kg around
