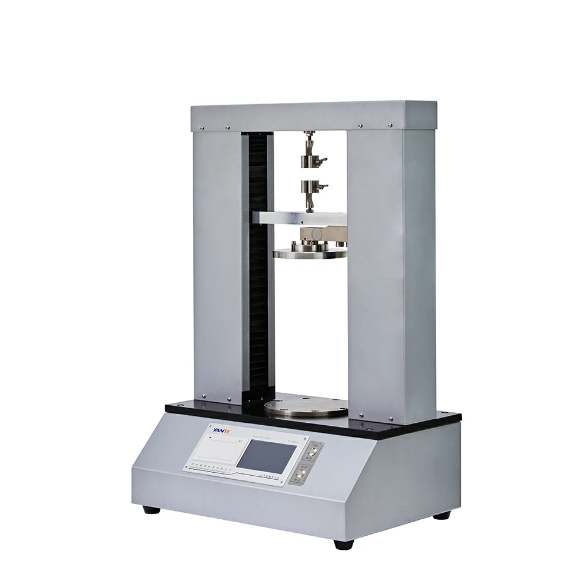

Yante YT-LY Tensile and Compression Tester (1～300N, 30～3000N)

Power Supply: AC100～240V，50/60Hz 100W

Working Environment:

Temperature: 10~35℃

Humidity: ≤85％

Display: 5 inch color touch screen

Measuring range:

Tensile 1～300N（customizable）

Compression 30～3000N（customizable）

Accuracy: ±1% (Range 5%～100%)

Resolution:

0.1N（Tensile)

1N（Compression）

Stretching speed: 1～100 mm/min

Return speed: 1～500 mm/min

Distance between tension chucks: 0～300 mm Adjustable

Standard width of tension chuck: 15mm（customizable）

Pressure panel: Round pressure plate (diameter 15cm)（customizable）

Stroke: 300 mm

Print: Built-in thermal printer

Communication Interface: RS232 (default) (USB, WIFI optional)

Dimension: 550×415×790 mm

Net Weight: 70 kg around

Datasheet
