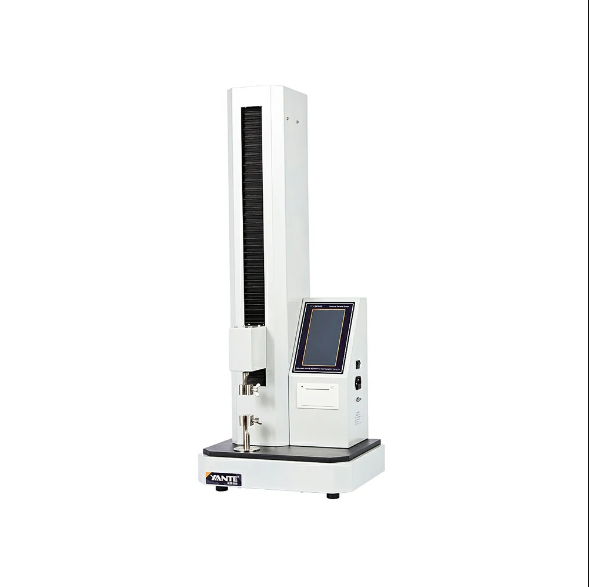

Yante YT-L1000 Vertical Tensile Tester (3～1000N)

Power Supply: AC(100～240)V，(50/60)Hz 100W

Working Environment:

Temperature(10~35)℃

Humidity≤ 85％

Display: 7 inch color touch screen

Measuring range: (3～1000)N

Display resolution: 0.1N

Indication error: ±1％(Range 5%～100%)

Work stroke: 500mm

Sample width: 15mm(25mm，50mm Optional)

Stretching speed: (1～500)mm/min (Can be adjusted arbitrarily)

Communication Interface: RS232 (Default) (USB, WIFI optional)

Print: Built-in thermal printer

Gas source: ≥0.5MPa

Dimension: 400×300×800 mm

Net Weight: 40kg around
