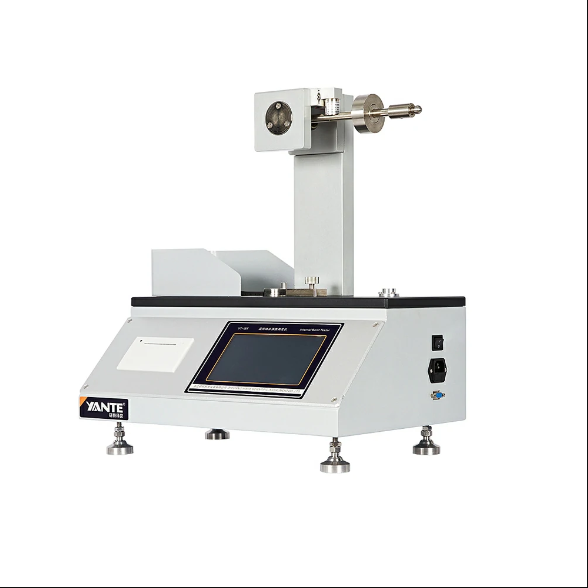

Yante YT-IBT Internal Bond Tester (20～500J/m2, 500～1000J/m2)

Power Supply: AC(100～240)V，(50/60)Hz 50W

Working Environment:

Temperature(10~35)℃

Humidity≤ 85％

Air source: ≥0.4Mpa

Display: 7 inch color touch screen

Specimen size: 5.4mm*25.4mm

Specimen holding force: 0～60kg/cm²(Adjustable)

Impact angle: 90°

Resolution: 0.1J/m²

Measuring Range:

A: (20～500)J/m2

B: (500～1000)J/m2

Indication error:

A: ±1J/ m²

B: ±2J/ m²

Unit: J/m²

Data storage: Can store 16000 batch data; up to 20 test data under each batch

Print: Built-in thermal printer

Communication Interface: RS232 (default) (USB, WIFI optional)

Dimension: 460×310×515 mm

Net weight: 25kg around

Datasheet
