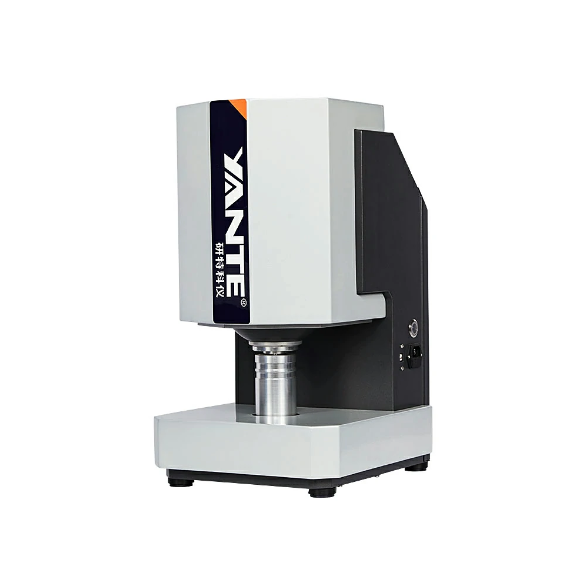

Yante YT-CM3000 High Accuracy Color Analyzer (Φ25mm/Φ30mm)

Power supply: AC100-220V (50/60)Hz 50W

Working Environment:

Temperature: 10~35℃

Humidity: ≤ 85％

Geometric conditions: Double beam (d/0)

Light source: Pulsed xenon lamp, D65 and C light source calibration

Measuring area/test aperture: Φ25mm/Φ30mm

Linearity error of photometer: 0.3%

Spectral bandwidth: 10nm

Receiver: 128-cell photoelectric array

Wavelength range: 400-700nm

Measuring range: 0-200%

Measuring time (typical): 4 - 20s

Repeatability: ≤±0.05 CIELAB（ΔE*）

Reproducibility (difference between instruments): ≤±0.30 CIELAB（ΔE*）

Perspective: 2°, 10°

Spectral data interval: 10nm

UV cut filter: 395, 420nm

Communication Interface: USB2.0

Dimension: 280×345×500 mm

Net Weight: 18kg around
