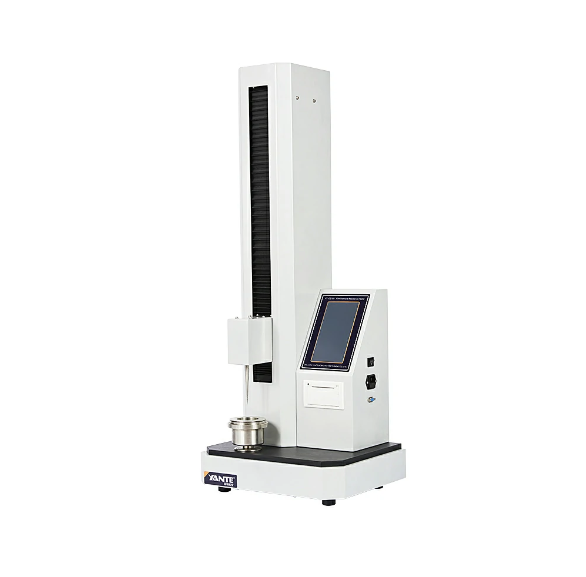

Yante YT-CC100 Film Puncture Resistance Tester (0-100N)

Power Supply: AC100～240V，50/60Hz 100W

Working Environment:

Temperature: 10~35℃

Humidity: ≤85％

Display: 7 inch color touch screen

Measuring range: 0-100N

Display resolution: 0.01N

Indication error: ±0.5% (Range 5%～100%)

Indication variability: ≤0.5%

Probe stroke: 300mm

Test speed: 50 ±5 mm/min （1-500mm/min Continuously adjustable)

Stretching speed: (1～500)mm/min (continuously adjustable)

Print: Built-in thermal printer

Communication Interface: RS232

Dimension: 550×470×930 mm

Net Weight: 71kg around
